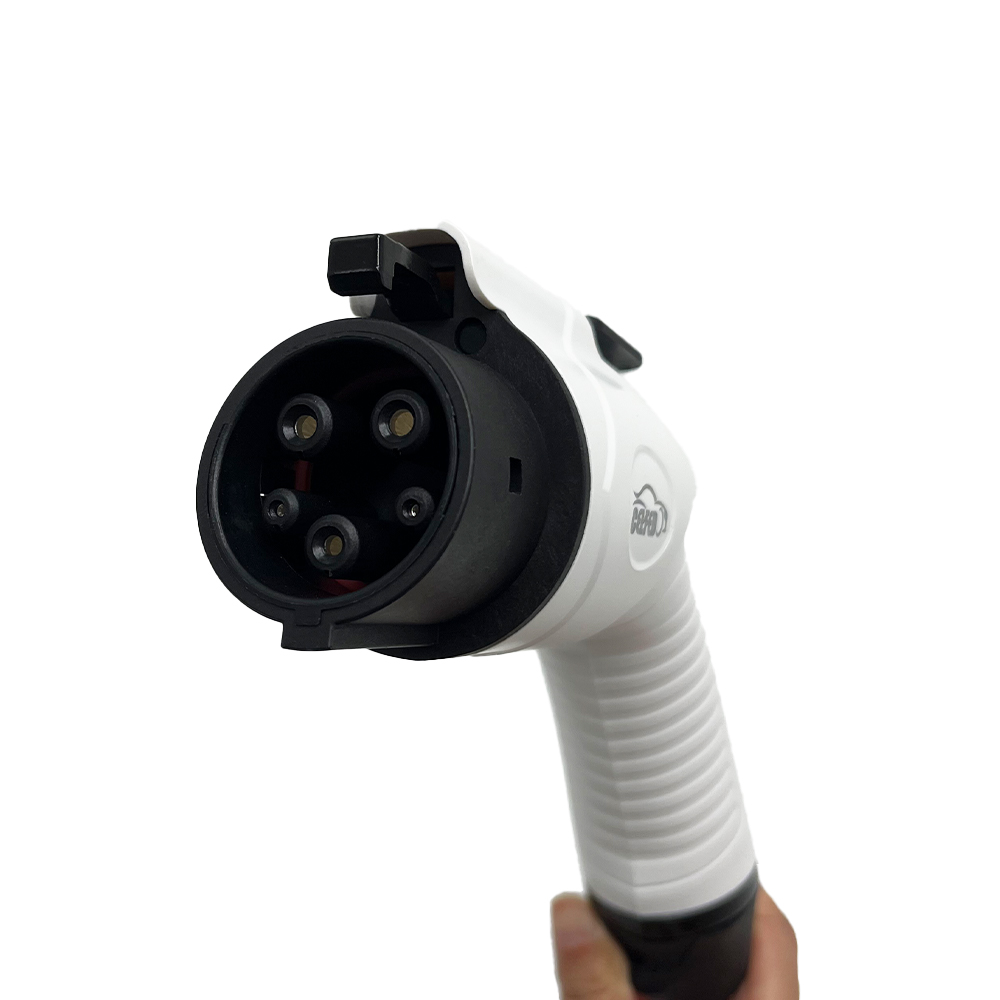

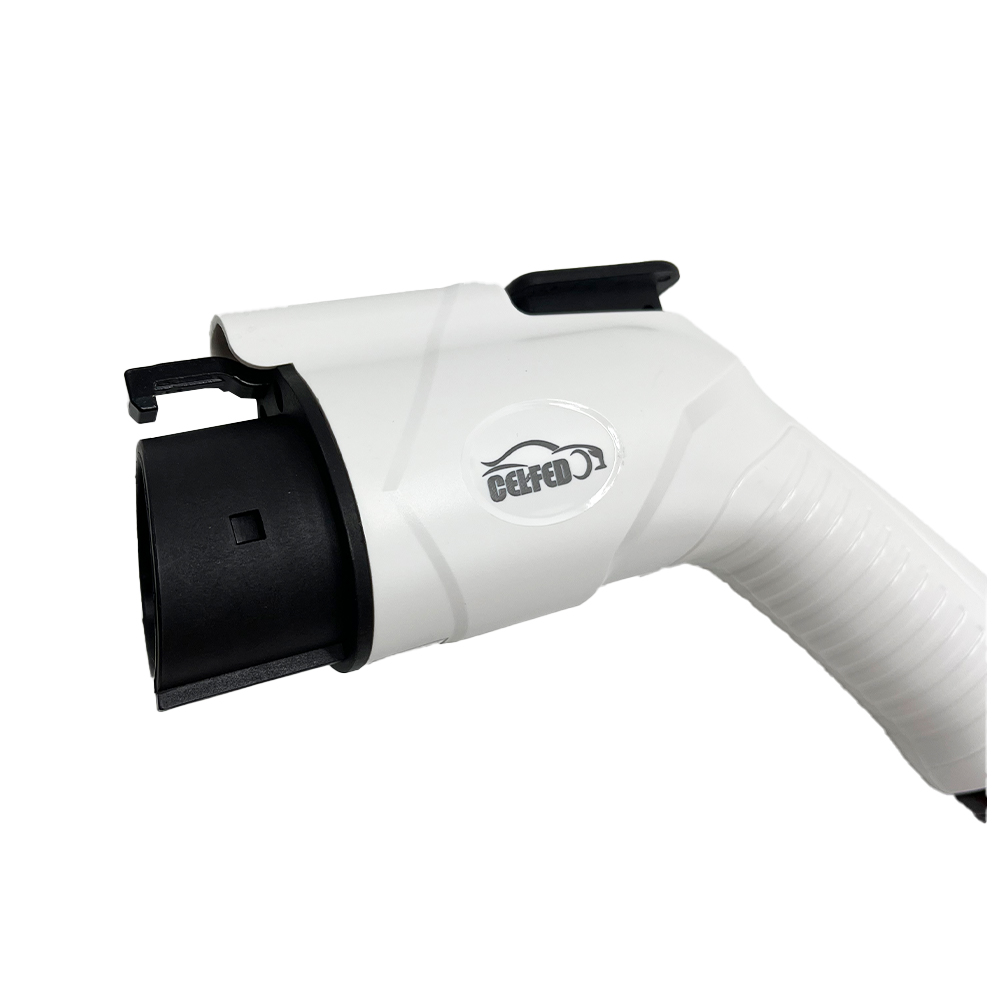

Model 3 ev charging cable T2 to T1 16A 8M

Model: BD-T2T1-16AS1

Electrical Patameter

Rated Current: 16A.

Insulation Resistance: >1000MΩ.

Operation Voltage: 110V-250VAC.

Therminal Temperature Rise < 50K

Withstand Voltage: 2000V.

Contact Impedance: 0.5mΩ Max.

Working Temperature: -30℃-50℃.

Mechanical Patameter

Mechanical Life: no-load plug in/out > 10000 times

Impact of external force: can afford 1M drop.

Coupled insertion force: 45N < F <100N

Material

Housing material: thermoplastic, flame retardant grade UL94 V-0.

Terminal: Copper alloy, silver plating.

Cable specification:

16A single Phase, 3×2.5mm²+1×0.75mm² TPE or TPU.

Cable Color: Black / orange / green options.

length: 8M

IEC 62196-2 EV charger cable.
