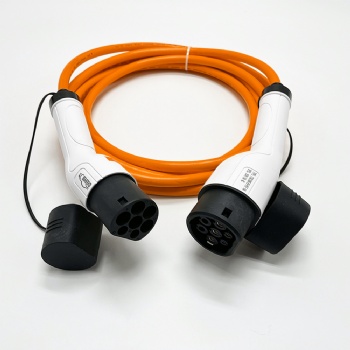

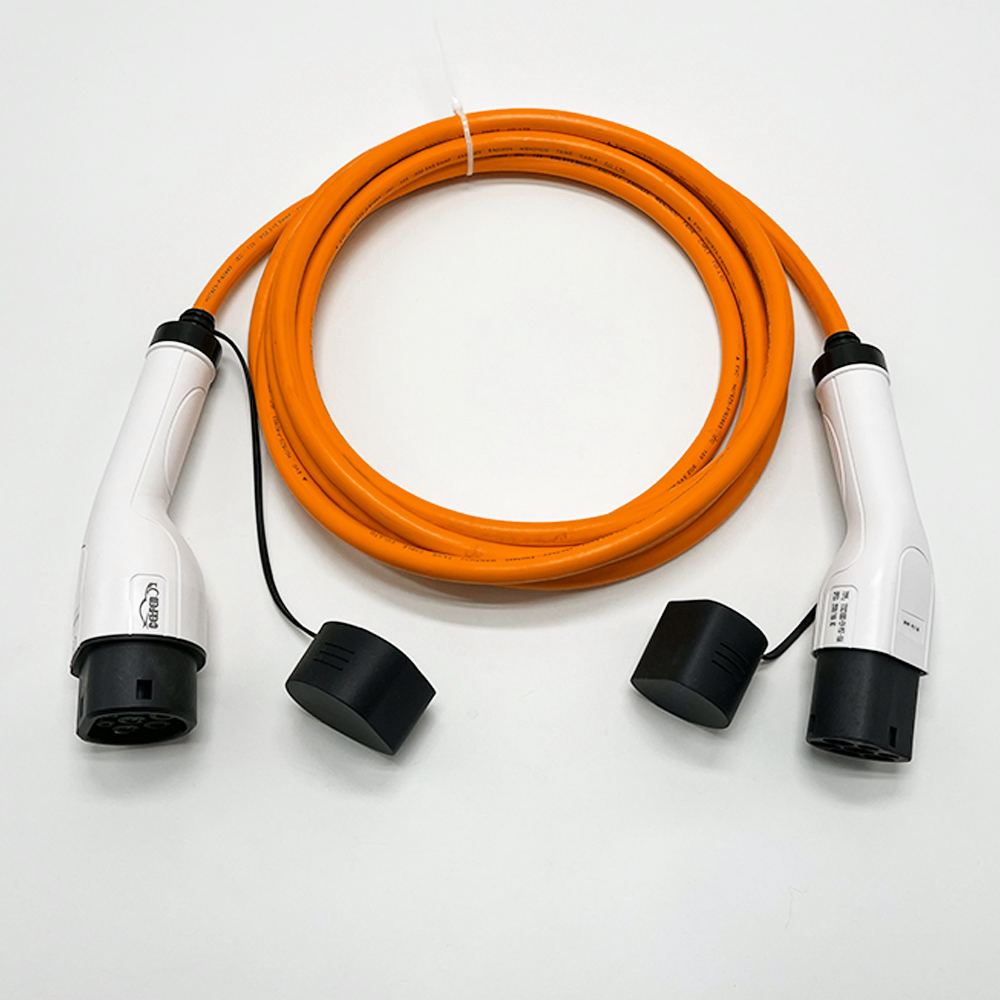

Model 3 Charging cable for EV 32A 5 meters

Model 3 Charging cable for EV 32A 5 meters


Model 3 Charging cable for EV 32A meters

Model: BD-T2T2-32AS1


Electrical Patameter

Rated Current: 32A.

Insulation Resistance: >1000MΩ.

Operation Voltage: 110V-250VAC.

Therminal Temperature Rise < 50K

Withstand Voltage: 2000V.

Contact Impedance: 0.5mΩ Max.

Working Temperature: -30-50℃.


Mechanical Patameter

Mechanical Life: no-load plug in/out > 10000 times

Impact of external force: can afford 1M drop.

Coupled insertion force: 45N < F <100N


Material

Housing material: thermoplastic, flame retardant grade UL94 V-0.

Terminal: Copper alloy, silver plating.


Cable specification:

32A single Phase, 3×6mm²+1×0.5mm² TPE or TPU.

Cable Color: Black / orange / green options.

length: 5M
